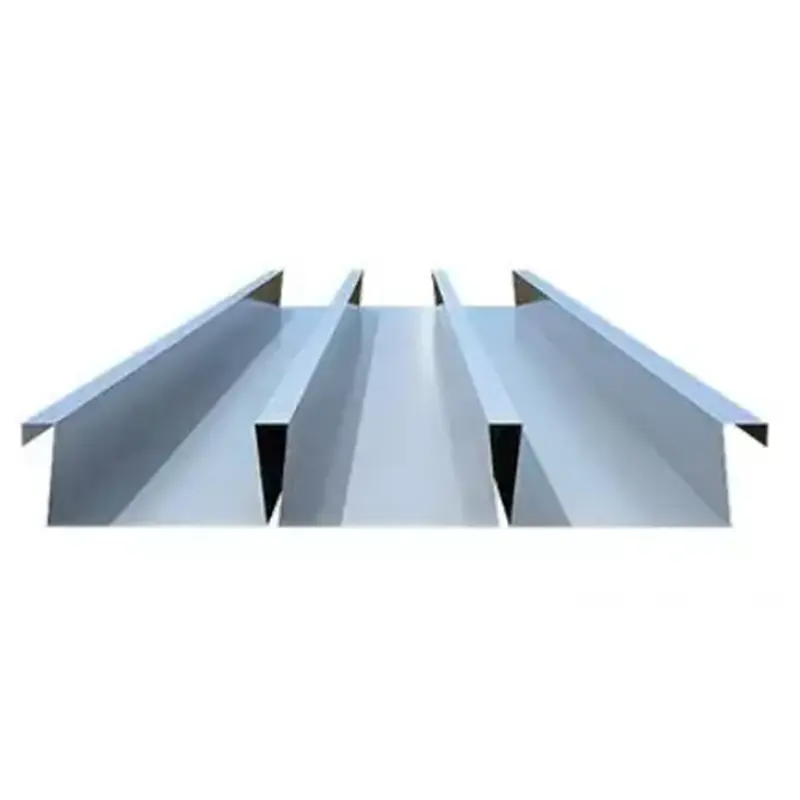

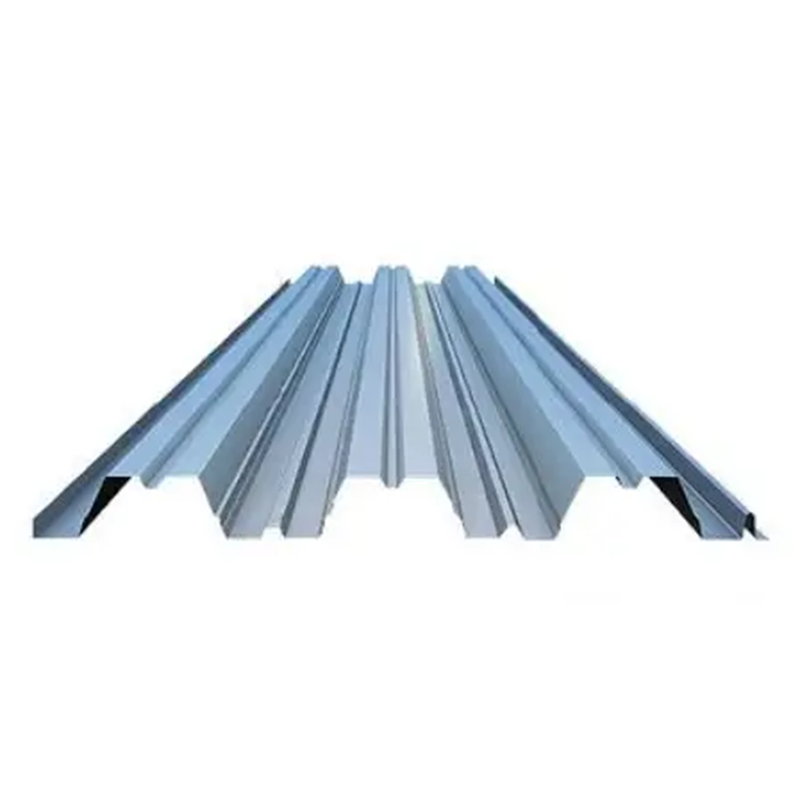

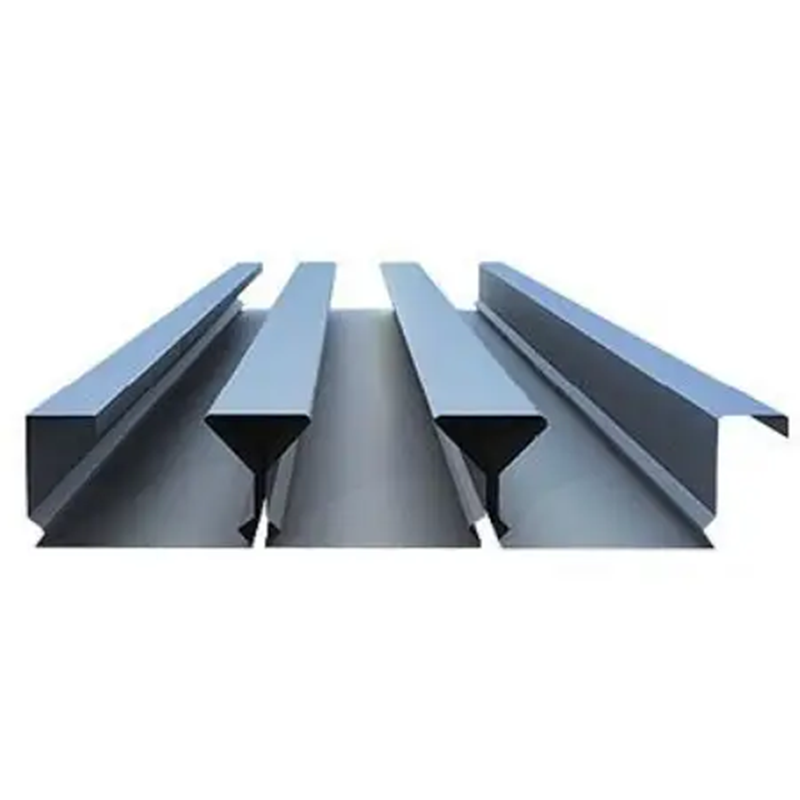

Single-layer profiled floor slab series

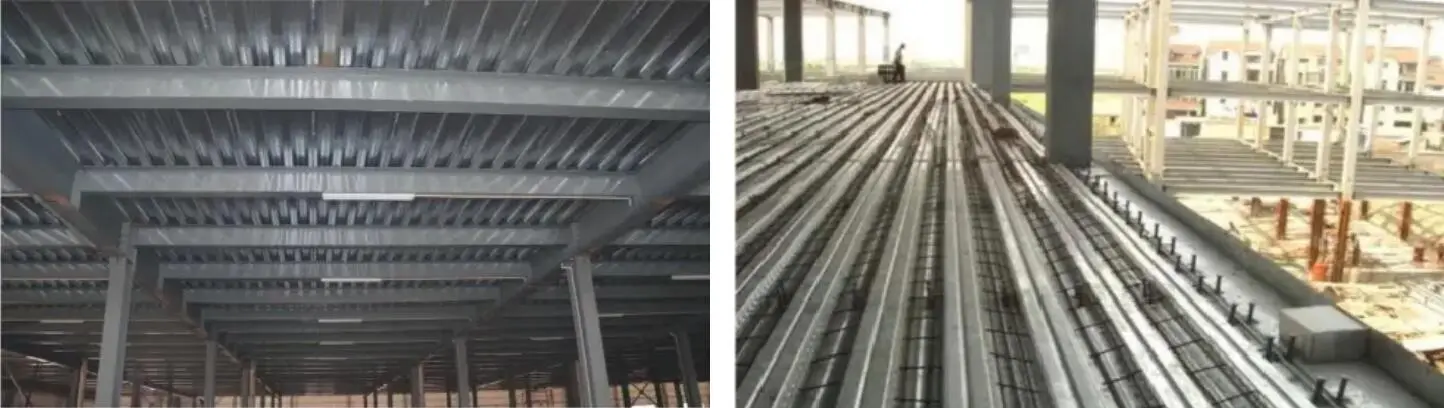

The galvanized steel plate is cold-formed by rolling, and the steel plate and concrete are connected by shear connectors to bear the force together, giving full play to the inherent advantages of these two materials, which has the advantages of light weight, high strength, large rigidity, convenient and quick construction, easy renewal and convenient industrial production.

Advantages Of Profiled Steel Plate Floor Slab

Save a lot of temporary templates and save all or part of template support.
It is more important for high-rise buildings and earthquake areas to reduce the amount of concrete and the permanent load of structures.
Save a lot of labor and reduce workload in transportation, stacking and installation.
It is convenient to lay communication, electric power, heating and other pipelines, and can lay materials such as heat preservation, sound insulation, heat insulation and vibration isolation to improve floor performance.
Give full play to the good tensile strength and ductility of steel and the excellent compressive strength and greater stiffness of concrete; The combination with concrete improves the overall buckling and local buckling performance of steel.
Used as tensile reinforcement, reducing the production and installation of reinforcement. Provide working platforms for various types of work, realize three-dimensional operation, speed up the progress and shorten the construction period.

Product Parameter

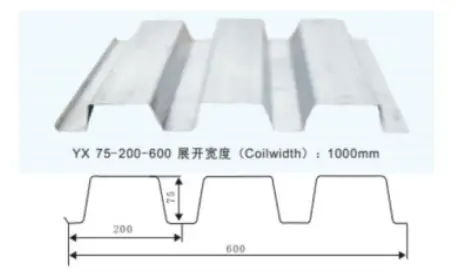

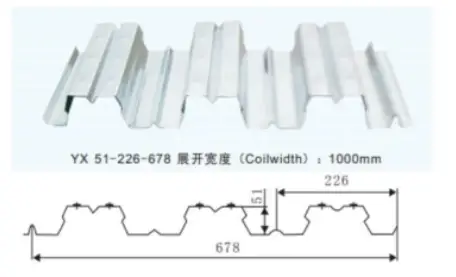

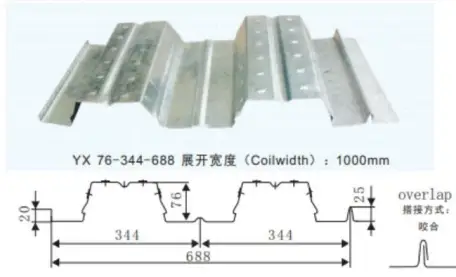

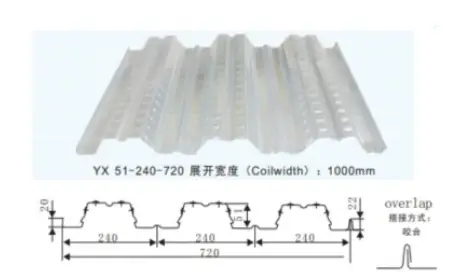

Image	Thickness(mm)	Moment of inertia（cm⁴/m）	Section of modulus（cm³/m）
	0.8	91.62	23.46
	1.0	119.38	30.61
	1.2	142.01	36.98
	1.4	167.34	43.9
	1.5	178.70	46.80
	0.8	52.8	16.45
	1.0	64.55	20.69
	1.2	76.38	26.39
	1.4	90.37	28.97
	1.5	96.83	31.03
	0.8	89.35	23.7
	0.9	103.5	25.7
	1.0	118.6	31.6
	1.2	149.8	40.0
	0.8	47.52	17.90
	0.9	53.80	20.10
	1.0	58.10	22.90
	1.2	68.70	28.40
